Product Code: TRL-33740R
Manufacturer Code: 33740R

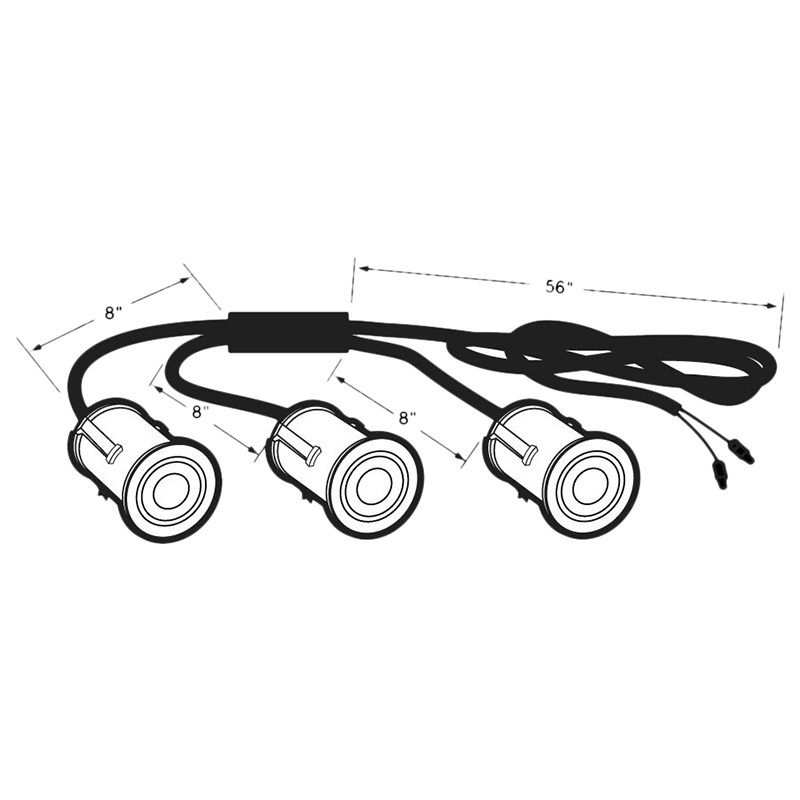

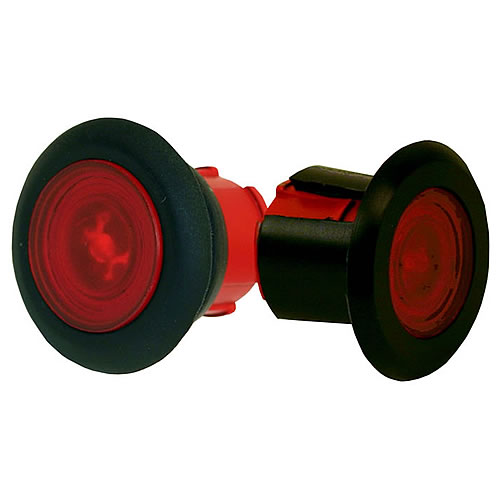

World smallest LED marker lamp for the transportation industryHardwired lamp design is easily retrofittedRequires 3/4" mounting holeAdditional part numbers available with extended harness lengths - call customer service for details
- Warranty: Lifetime
KIT (Yes/No): Yes
Lens Shape: Round
Lighting Technology: LED
Lamp Connection: Hardwired
Lamp Connection (Simplified): Hardwired - Lens Color: Red
Lens Height: 0.72"
Lens Material: Polycarbonate
Lens Width: 0.72"
Mount/Trim Color: Black
Mount/Trim Material: PVC - Mount Type: Grommet Kit
Number of Diodes/Bulbs: 1
Number of Lights: 3
Number of Wires: 2
Packaging Type: Standard
Plug Side One: Hardwired - Plug Side Two: .180 Bullet
Sealed/Bulb Replaceable: Sealed
Standards Met: P2
Total Depth: 0.97"
Total Height: 0.97"
Total Length: 0.5" - Total Width: 0.72"
UNSPSC/Tariff: 39111706
VMRS: 034-004-149
Voltage: 12V
Weight: 0.54 lb
