Product Code: GRTAC-84-5030
Manufacturer Code: 84-5030

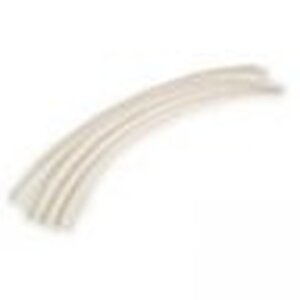

Flexible Dual Wall is an adhesive lined heat shrink tubing that provides moisture resistance, strain relief and electrical insulation for splices, terminations, breakouts and mechanical connections. The outer wall is semi-rigid, cross-linked polyolefin, while the inner wall is an adhesive lining that flows with the application of heat. This moisture resistant tubing provides flexibility to insulate and protect irregular shape products. It also provides rugged protection from chemicals, abrasion, vibration and flexing.
Features:
Shrink Ratio: 3:1Industry leading dual wall, "flexible" - adhesive lined heat shrinkable tubingDesigned for insulating and sealing components and splices for under the hood environment
- Material: Cross linked Polyolefin
Color: Clear
Voltage: 600V
Gauge: 20-12 GA
Operating Temperature: -40°C to 110°C (-40°F to 230°F)
Size: 3/16"
Length: 6"
Standards: UL E35586, CSA LR31929
Pack Quantity: 6
Stud or Tab Size: 16"
Shrink Ratio: 3:1
Outer Wall Construction: Flexible
Inner Wall Construction: Adhesive Lined
Moisture Resistancy: High
ROHS: Yes
Type: Dual Wall"
