Horton CLUTCH DMA2S SE 24 REMAN,CUM,172.5,8-PK,65.0 PLT,20.7 STUDS 79A8618-2

Product Code: HRT-79A8618-2
Manufacturer Code: 79A8618-2

Built to the same specifications as Horton Genuine models

Easy-to-install, exact drop-in replacements

Total cost can be less than rebuilding

Two-year warranty for line-haul applications

Credit for old Horton or competitor cores

Low eddy-current speeds reduce noise, increase available horsepower, conserve fuel and minimize radiator abrasion

Higher, spring-actuated fan speeds make sure necessary cooling is delivered

Faster engine warm-ups in cold weather

Premium bearings and friction liners

High torque for turning large fans

Lower parts count for easy installation and maintenance

*Core goods must be returned or there will be a $400 charge.

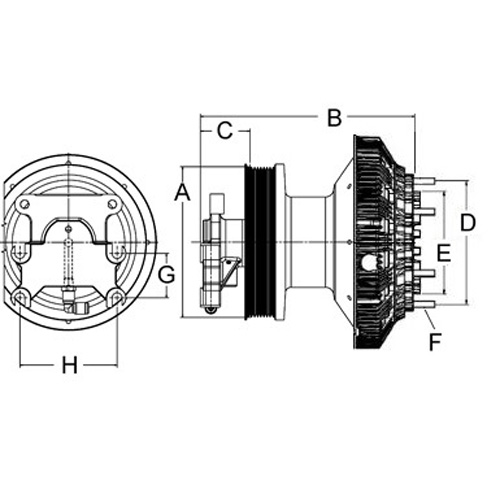

Bolt Circle: 3.5 in.
Heavy Duty: TRUE
Vertical Mounting Distance: 2.83 in.
Belt Groove Location: 1.98 in.
Fan Pilot Diameter: 2.56 in.
Fan Pilot Diameter: 2.56 in.
Stud Thread Size: .375-24 UNF in.
Belt Configuration: 10PK
Fan Blade Stud Length: 0.81 in.
Overall Length: 9.12 in.
Back Pulley Diameter: 6.85 in.
Center of JB To Top Right Mounting Hole: 0.05 in.
Horizontal Mounting Distance: 8.66 in.
