Product Code: HRT-99A4700
Manufacturer Code: 99A4700

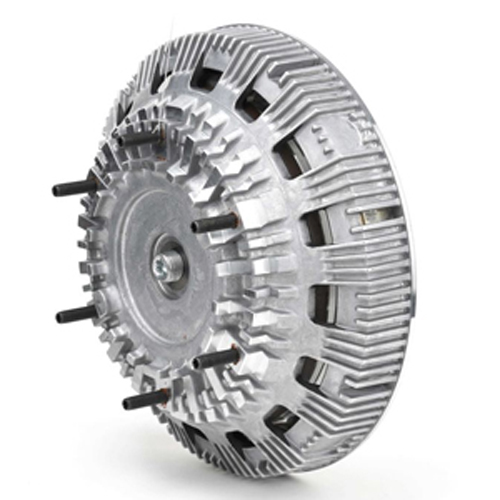

Replaces 994972 and 995521. This is a Clutch Pack Assembly Only, requires additional Pulley and Journal Bracket Assemblies for complete fan drive replacement.DM Advantage Two-Speed Clutch Pack AssemblyTwo-speed fan clutch, fan clutch, engine cooling, fan drive, performance, cooling system, horsepower, performanceEngine Cooling Fan Clutch

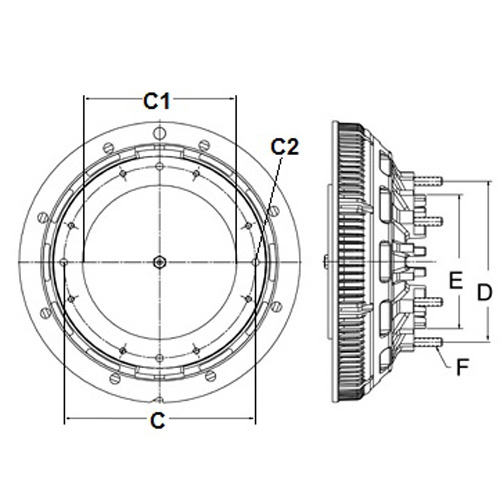

- Bolt Circle: 6 in.
Clutch Pack Mtg Bolt Orientation: 4 - M8 x 1.25 Mtg Studs, 2 @ 77.5°, 2 @ 102.5°
Fan Pilot Diameter: 5 in.
MTG Stud Length: 1.1 in.
Stud Thread Size: .312-18 in.
Clutch Pack MTG Bolt Diameter: 7.15 in.
Clutch Pack Pilot Diameter: 5.39 in.
Heavy Duty: TRUE
MTG Stud Thread Type: .312-18 UNC
- Manufacturer / Manufacturer # / Horton OEM # - INTERNATIONAL / 3611885C93 / 98A4700
Manufacturer / Manufacturer # / Horton OEM # - INTERNATIONAL / 3824248C94 / 98A4700
