Product Code: HRT-79A8177
Manufacturer Code: 79A8177
Low eddy-current speeds reduce noise, increase available horsepower, conserve fuel and minimize radiator abrasionHigher, spring-actuated fan speeds make sure necessary cooling is deliveredFaster engine warm-ups in cold weatherPremium bearings and friction linersHigh torque for turning large fansLower parts count for easy installation and maintenanceEngine Cooling Fan ClutchDM Advantage Two-Speed Fan Clutch*Core goods must be returned or there will be a $400 charge.
Click Here for details for returns of core products

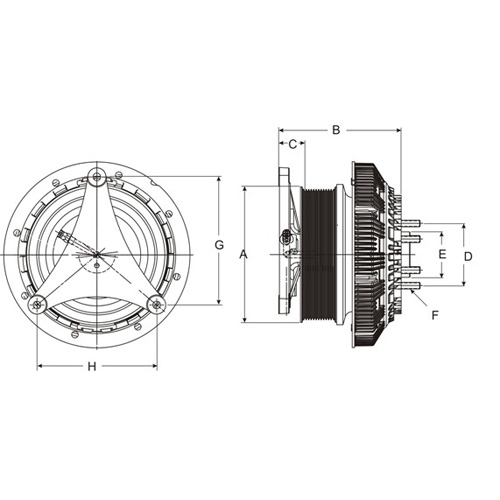

- Back Pulley Diameter: 5.25 IN
Belt Groove Location: 1.48 IN
Center of JB To Top Right Mounting Hole: 2.82 IN
Fan Pilot Diameter: 2.56 IN
Horizontal Mounting Distance: 6.73 IN
Horizontal Mounting Distance: 6.73 IN
Stud Thread Size: .375-24 UNF IN
Belt Configuration: 12PK
Bolt Circle: 3.5 IN
Fan Blade Stud Length: 1.46 IN
Heavy Duty: TRUE
Overall Length: 6.89 IN
Vertical Mounting Distance: 7.21 IN
- Manufacturer / Manufacturer # / Horton OEM # - MACK / 40MH523M / 98A8177
Manufacturer / Manufacturer # / Horton OEM # - MACK / 22113061 / 98A8177
Manufacturer / Manufacturer # / Horton OEM # - MACK / 21608880 / 98A8177
Manufacturer / Manufacturer # / Horton OEM # - HORTON / 79A8177CRLS / 79A8177
