Product Code: HRT-79A8138
Manufacturer Code: 79A8138
Low eddy-current speeds reduce noise, increase available horsepower, conserve fuel and minimize radiator abrasionHigher, spring-actuated fan speeds make sure necessary cooling is deliveredFaster engine warm-ups in cold weatherPremium bearings and friction linersHigh torque for turning large fansLower parts count for easy installation and maintenanceEngine Cooling Fan ClutchDM Advantage Two-Speed Fan Clutch*Core goods must be returned or there will be a $400 charge.
Click Here for details for returns of core products
- Belt Configuration: 12K

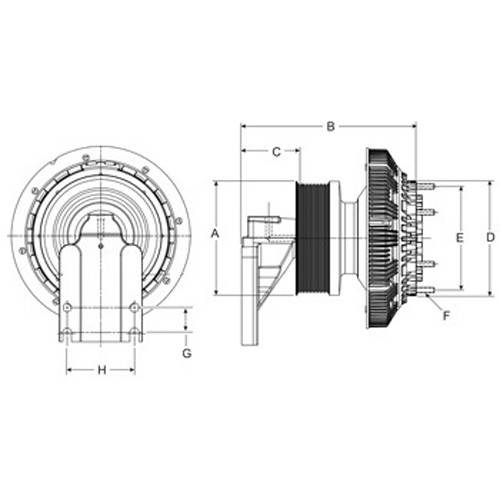

Fan Blade Stud Length: 1.1 IN
Belt Groove Location: 3.39 IN
Fan Pilot Diameter: 5 IN
Horizontal Mounting Distance: 3.94 IN
Horizontal Mounting Distance: 3.94 IN
Stud Thread Size: .312-18 UNC-2A IN
Bolt Circle: 6 IN
Back Pulley Diameter: 6.36 IN
Center of JB To Top Right Mounting Hole: 2.83 IN
Heavy Duty: TRUE
Overall Length: 9.96 IN
Vertical Mounting Distance: 3.44 IN
- Manufacturer / Manufacturer # / Horton OEM # - KENWORTH / F17-6018M08 / 98A8138
Manufacturer / Manufacturer # / Horton OEM # - PACCAR / F17-6015M21 / 98A8138
Manufacturer / Manufacturer # / Horton OEM # - PETERBILT / F17-6018M08 / 98A8138
