Product Code: MAX-M23025RB-DC
Manufacturer Code: M23025RB-DC

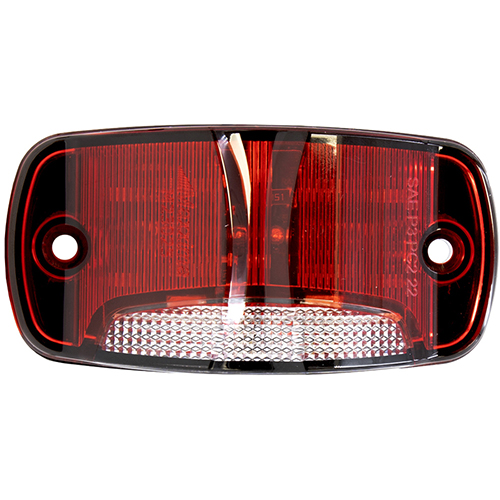

The M23025RB-DC is a dual color, dual function, Clearance Marker Lamp and Ground Illumination Light. Improve driver safety by lighting up the ground at night around the tractor and/or trailer. The blue "aux" light is designed for stationary applications, and not recommended for moving vehicles. The three-wire connection allows a dedicated circuit and switch to activate the ground light. This light features a polycarbonate lens and housing and is backed by a 5-year warranty
Features:
DOT FMVSS108 Compliant LED Clearance Marker and secondary aux ground lightBlue "Aux" Light Directed DownwardSame Mounting Footprint as M23015R/YPolycarbonate Lens & Housing
- Dimensions: 4.0" W x 2.0" H x 1.0" D
- Fixture Shape: Rectangle
- Mount Type: 2 Hole Surface, 3" C to C
- LED Color: Red
- Lens Color: Clear
- Voltage: 12.8VDC
- amps: 160mA
- Light Style: LED
- SAE Class: J592, J2042
