Product Code: MAX-M42745Y-CA13
Manufacturer Code: M42745Y-CA13

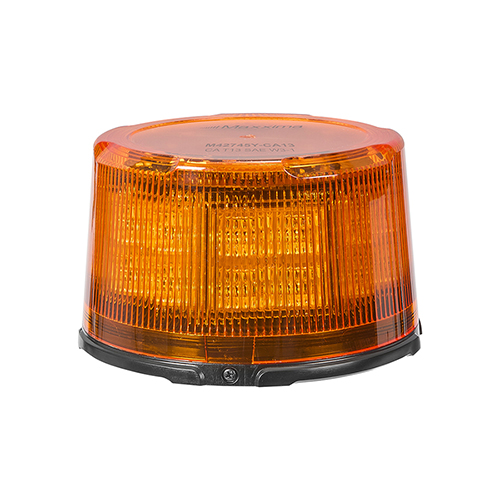

The M42745Y-CA13 is an LED Amber Flashing Warning Beacon. It meets SAE J845 Class 1A and California Title 13 requirements. It operates at 12 and 24 VDC, offers 32 selectable flash patterns and 3 programmable memory slots (or modes). Of the 36 LEDs, 24 are side facing and 12 face upwards to the top of the dome. The 12 top LEDs can be toggled on or off and can be programmed in one of the 3 memory slots.
Features:
SAE Class 1 LED Warning BeaconCalifornia CCR Title 13 Compliant (CA 13)32 Programmable Flash PatternsCan Sync Multiple Beacons12 LEDs on Top Can be Toggled ON or OFFPolycarbonate Dome & Cast Alum. BaseRetail Packaging5 Year Warranty
- Dimensions: 6.9" Diam. x 4.1" H
Connector: 6 Jacketed Wires, Blunt Cut, 12"
Legal Heading: W3-1, CA T13 - Mount Type: 3 Hole Surface
- LED Color: Amber
- Voltage: 12/24VDC
- amps: 4.0A 12V / 2.0A 24V
- Light Style: LED
- SAE Class: J845 Class 1A, CA 13
