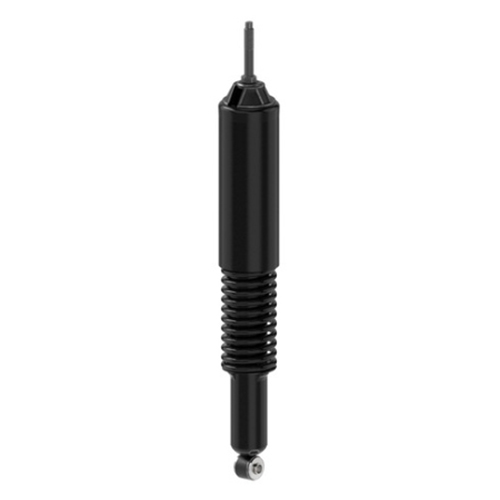

Product Code: MNR-555010MM
Manufacturer Code: 555010MM
FOR RECREATIONAL VEHICLES: Designed to handle the demands of recreational vehicles that go on cross country adventures and trips close to home
CONSISTENT RIDE: All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger reserve tube holds more fluid to improve performance (when required)
EXCEPTIONAL HANDLING: 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the bore provides more efficient and consistent control (most applications)
STRONG AND DURABLE: Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
- Extended Length (IN): 22.125
Extended Length (IN): 22
Extended Length (MM): 562
Lower Mount Type: Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 1.7/16" Sleeve OAL
Upper Mount Type: Stem Mount - 2.5/8" Stem Length X 1/2"-13 Thread Pitch
Compressed Length (MM): 342.9
Compressed Length (IN): 13.5
Compressed Length (IN): 13.5
Travel Length (IN): 8.625
Travel Length (MM): 219.1
Shock Absorber Rod End Measuring Point: Base of Stem
Shock Absorber Body End Measuring Point: Center of Loop
Damping Type: Oil
Grade Type: Premium
Adjustable Rebound: No
Dust Shield Included: Yes
Dust Shield Material: Plastic
Includes Bump Stop: No
Upper Mount Code: S5
Lower Mount Code: LS15
Hydraulic Lockout: No
Internal Rebound Bumper: No
Adjustable Compression: No
Adjustable Ride Height: No - Warranty: Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty
