Product Code: MNR-66504MM
Manufacturer Code: 66504MM

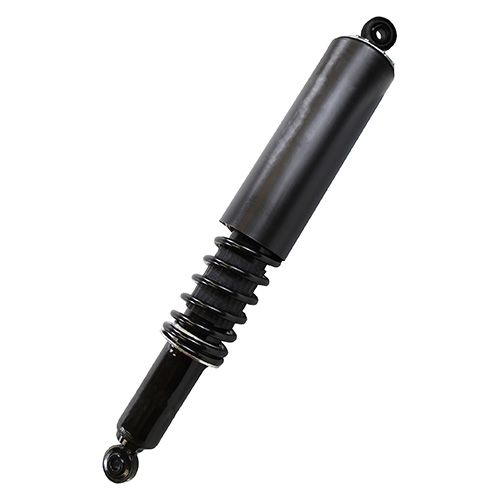

HANDLES THE LOAD: Stabilizer specifically designed for hardworking vehicles with self-steering drop axles
CONSISTENT PERFORMANCE: All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while large reserve tube holds more oil to run cooler
STRONG AND DURABLE: Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality (most applications); arc welds up to 360° for durability
EXCEPTIONAL HANDLING: Full displaced valving delivers better valving range on both compression and extension cycles for a consistent performance, large bore for more efficient damping control and heavy-rate coil spring for control
- Extended Length (IN): 22.4688
Extended Length (MM): 570.7
Lower Mount Type: Loop Bushing - 1/2" Bushing ID X 3/4" Bushing OAL
Upper Mount Type: Loop Bushing - 1/2" Bushing ID X 3/4" Bushing OAL
Gas Charged: No
Body Diameter (MM): 50.8
Body Diameter (IN): 2
Compressed Length (IN): 13.9375
Compressed Length (MM): 354
Travel Length (MM): 216.7
Travel Length (IN): 8.531
Shock Absorber Rod End Measuring Point: Center of Loop
Shock Absorber Body End Measuring Point: Center of Loop
Grade Type: Premium
Dust Shield Included: Yes
Dust Shield Material: Plastic
Upper Mount Code: L6
Lower Mount Code: L6 - Warranty: Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty
