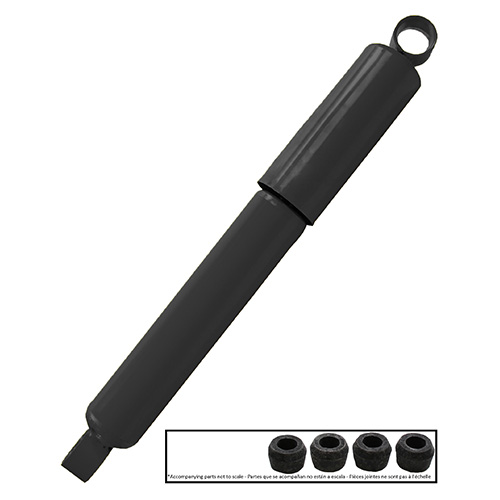

Product Code: MNR-65434MM
Manufacturer Code: 65434MM
FOR HARDWORKING COMMERCIAL VEHICLES: Designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
CONSISTENT RIDE: All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8-in. reserve tube holds more fluid to improve performance
EXCEPTIONAL HANDLING: 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4-in. bore provides more efficient damping control to provide consistency and a smooth ride
STRONG AND DURABLE: Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
- Mounting Hardware Included: No
Extended Length (MM): 529.8
Extended Length (IN): 20.8594
Lower Mount Type: Loop (Eyelet) Bushing
Lower Mount Type: Loop Bushing Mount - 3/4" Bushing ID X 1.9/16" Bushing OAL
Upper Mount Type: Loop Bushing Mount - 3/4" Bushing ID X 1.9/16" Bushing OAL
Gas Charged: Yes
Body Diameter (MM): 60.5
Body Diameter (IN): 2.38
Compressed Length (MM): 344.9
Compressed Length (IN): 13.5781
Travel Length (MM): 184.9
Travel Length (IN): 7.281
Finish: Painted
Shock Absorber Rod End Measuring Point: Center of Loop
Shock Absorber Body End Measuring Point: Center of Loop
Shaft Diameter (MM): 18
Internal Construction Type: Twin Tube
Grade Type: Premium
Adjustable Damping: No
Adjustable Rebound: No
Dust Shield Included: Yes
Dust Shield Material: Metal
Includes Bump Stop: No
Dust Shield Diameter (MM): 69.1
Dust Shield Diameter (IN): 2.72
Upper Mount Code: L3
Lower Mount Code: L3
Hydraulic Lockout: Yes
Shock Absorber Bore Size (IN): 1.75
Shock Absorber Bore Size (MM): 44.5
Internal Rebound Bumper: No
Adjustable Compression: No
Adjustable Ride Height: No
Active or Passive Suspension: Passive - Warranty: Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty
- Colors: Black
