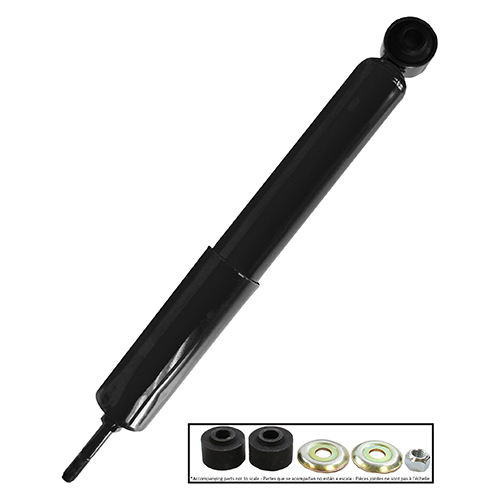

Product Code: MNR-65408MM
Manufacturer Code: 65408MM
FOR HARDWORKING COMMERCIAL VEHICLES: Designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
CONSISTENT RIDE: All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8-in. reserve tube holds more fluid to improve performance
EXCEPTIONAL HANDLING: 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4-in. bore provides more efficient damping control to provide consistency and a smooth ride
STRONG AND DURABLE: Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
- Mounting Hardware Included: Yes
Extended Length (MM): 552.4
Extended Length (IN): 21.75
Lower Mount Type: Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 2.3/4" Sleeve OAL
Lower Mount Type: Loop (Eyelet) Bushing and Sleeve
Upper Mount Type: Stem Mount - 3.5/16" Stem Length X 5/8"-11 Thread Pitch
Gas Charged: Yes
Compressed Length (IN): 14.125
Compressed Length (MM): 358.8
Travel Length (MM): 193.7
Travel Length (IN): 7.625
Shock Absorber Rod End Measuring Point: Base of Stem
Shock Absorber Body End Measuring Point: Center of Loop
Grade Type: Premium
Adjustable Rebound: No
Dust Shield Included: Yes
Dust Shield Material: Metal
Includes Bump Stop: No
Upper Mount Code: S6
Lower Mount Code: LS71
Hydraulic Lockout: Yes
Internal Rebound Bumper: No
Adjustable Compression: No
Adjustable Ride Height: No
Active or Passive Suspension: Passive - Warranty: Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty
