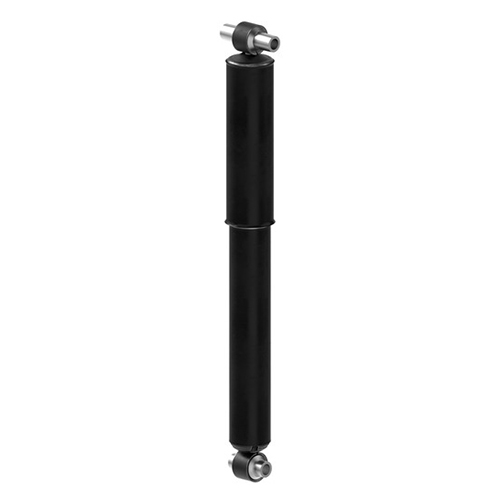

Product Code: MNR-65552MM
Manufacturer Code: 65552MM
FOR HARDWORKING COMMERCIAL VEHICLES: Designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
CONSISTENT RIDE: All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8-in. reserve tube holds more fluid to improve performance
EXCEPTIONAL HANDLING: 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4-in. bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
STRONG AND DURABLE: Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
- Mounting Hardware Included: No
Extended Length (IN): 24.73
Extended Length (MM): 628.1
Lower Mount Type: Loop Bushing and Sleeve Mount - 5/8"-16mm Sleeve ID X 2 9/16" Sleeve OAL
Lower Mount Type: Loop (Eyelet) Bushing and Sleeve
Upper Mount Type: Loop Bushing and Sleeve Mount - 5/8"-16mm Sleeve ID X 4" Sleeve OAL
Body Diameter (MM): 60.5
Body Diameter (IN): 2.38
Compressed Length (MM): 395.2
Compressed Length (IN): 15.56
Travel Length (IN): 9.52
Travel Length (MM): 241.8
Shock Absorber Rod End Measuring Point: Center of Loop
Shock Absorber Body End Measuring Point: Center of Loop
Grade Type: Premium
Adjustable Rebound: No
Dust Shield Included: Yes
Includes Bump Stop: No
Upper Mount Code: LS61
Lower Mount Code: LS62
Hydraulic Lockout: Yes
Internal Rebound Bumper: No
Adjustable Compression: No
Adjustable Ride Height: No
Active or Passive Suspension: Passive - Warranty: Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty
