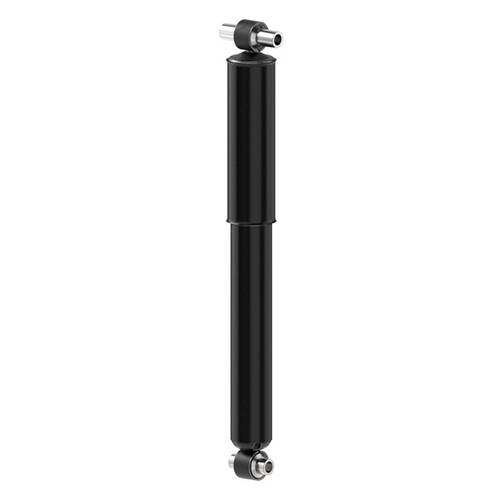

Product Code: MNR-65486MM
Manufacturer Code: 65486MM
FOR HARDWORKING COMMERCIAL VEHICLES: Designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
CONSISTENT RIDE: All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8-in. reserve tube holds more fluid to improve performance
EXCEPTIONAL HANDLING: 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4-in. bore provides more efficient damping control to provide consistency and a smooth ride
STRONG AND DURABLE: Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
- Mounting Hardware Included: No
Extended Length (IN): 24.98
Extended Length (MM): 634.5
Lower Mount Type: Loop Bushing and Sleeve Mount - 5/8"-16MM Sleeve ID X 2.9/16" Sleeve OAL
Lower Mount Type: Loop (Eyelet) Bushing and Sleeve
Upper Mount Type: Loop Bushing and Sleeve Mount - 5/8" Sleeve ID X 4" Sleeve OAL
Gas Charged: Yes
Compressed Length (IN): 15.625
Compressed Length (MM): 396.9
Travel Length (IN): 9.355
Travel Length (MM): 237.6
Finish: Painted
Shock Absorber Rod End Measuring Point: Center of Loop
Shock Absorber Body End Measuring Point: Center of Loop
Shaft Diameter (MM): 18
Internal Construction Type: Twin Tube
Grade Type: Premium
Adjustable Damping: No
Adjustable Rebound: No
Dust Shield Included: Yes
Dust Shield Material: Metal
Includes Bump Stop: No
Upper Mount Code: LS61
Lower Mount Code: LS62
Hydraulic Lockout: Yes
Shock Absorber Bore Size (MM): 44.5
Shock Absorber Bore Size (IN): 1.75
Foam Cell Design: No
Internal Rebound Bumper: No
Adjustable Compression: No
Adjustable Ride Height: No
Active or Passive Suspension: Passive - Warranty: Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty
- Colors: Black
