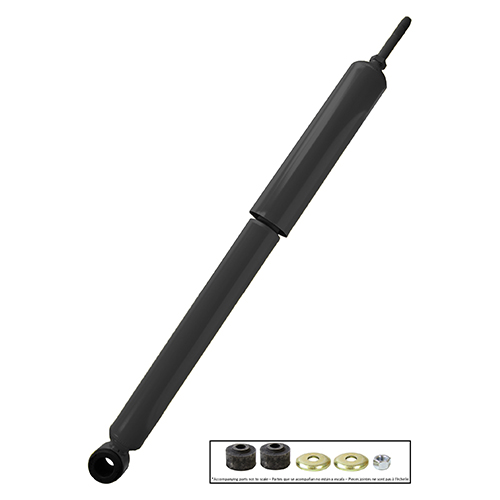

Product Code: MNR-66428MM
Manufacturer Code: 66428MM
FOR HARDWORKING COMMERCIAL VEHICLES: Designed to handle the demands of high mileage and severe use class 3-6 trucks and buses
CONSISTENT RIDE: All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while 2-in. or 2-1/4-in. reserve tube holds more fluid to improve performance (when required)
EXCEPTIONAL HANDLING: 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/8-in. bore provides more efficient damping control to provide consistency and a smooth ride
STRONG AND DURABLE: Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
- Mounting Hardware Included: Yes
Extended Length (IN): 27.375
Extended Length (MM): 695.3
Lower Mount Type: Loop Bushing Mount - 1" Bushing ID X 1.3/4" Bushing OAL
Lower Mount Type: Loop (Eyelet) Bushing
Upper Mount Type: Stem Mount - 3.5/16" Stem Length X 5/8"-11 Thread Pitch
Gas Charged: Yes
Compressed Length (IN): 16.6094
Compressed Length (MM): 421.9
Travel Length (IN): 10.7656
Travel Length (MM): 273.4
Shock Absorber Rod End Measuring Point: Base of Stem
Shock Absorber Body End Measuring Point: Center of Loop
Grade Type: Premium
Adjustable Rebound: No
Dust Shield Included: Yes
Dust Shield Material: Metal
Includes Bump Stop: No
Upper Mount Code: S6
Lower Mount Code: L4
Hydraulic Lockout: Yes
Internal Rebound Bumper: No
Adjustable Compression: No
Adjustable Ride Height: No
Active or Passive Suspension: Passive - Warranty: Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty
