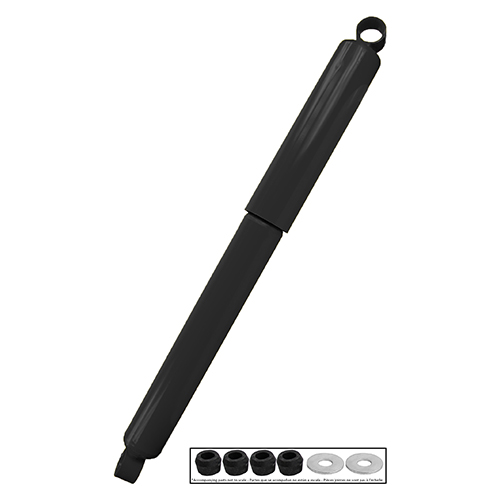

Product Code: MNR-65406MM
Manufacturer Code: 65406MM
FOR HARDWORKING COMMERCIAL VEHICLES: Designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
CONSISTENT RIDE: All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8-in. reserve tube holds more fluid to improve performance
EXCEPTIONAL HANDLING: 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4-in. bore provides more efficient damping control to provide consistency and a smooth ride
STRONG AND DURABLE: Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
- Mounting Hardware Included: Yes
Extended Length (MM): 711.2
Extended Length (IN): 28
Lower Mount Type: Loop (Eyelet) Bushing
Lower Mount Type: Loop Bushing Mount - 3/4" Bushing ID X 1.9/16" Bushing OAL
Upper Mount Type: Loop Bushing Mount - 3/4" Bushing ID X 1.9/16" Bushing OAL
Gas Charged: Yes
Compressed Length (IN): 17.375
Compressed Length (MM): 441.3
Travel Length (IN): 10.625
Travel Length (MM): 269.9
Shock Absorber Rod End Measuring Point: Center of Loop
Shock Absorber Body End Measuring Point: Center of Loop
Grade Type: Premium
Adjustable Rebound: No
Dust Shield Included: Yes
Dust Shield Material: Metal
Includes Bump Stop: No
Upper Mount Code: L3
Lower Mount Code: L3
Hydraulic Lockout: Yes
Internal Rebound Bumper: No
Adjustable Compression: No
Adjustable Ride Height: No
Active or Passive Suspension: Passive - Warranty: Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty
