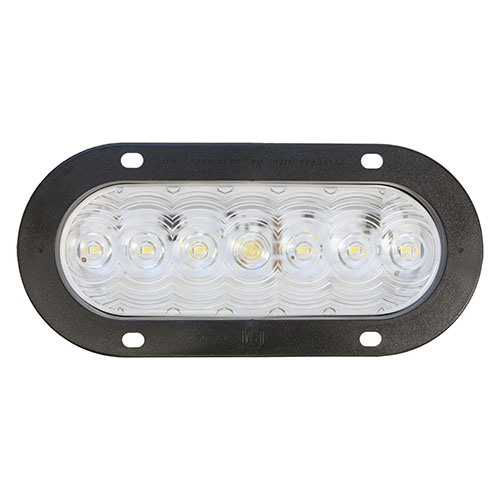

Product Code: PET-V822KC-7
Manufacturer Code: V822KC-7

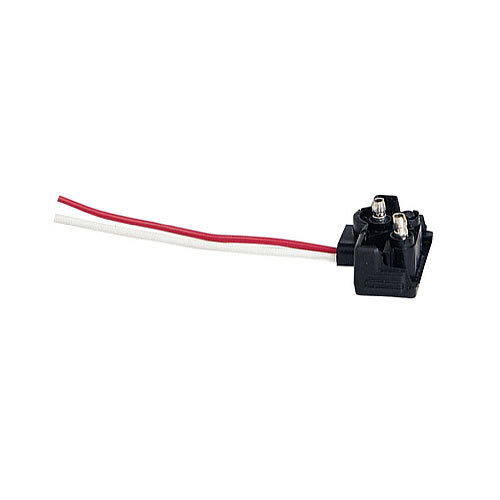

7 DiodesRegulated design provides voltage protection and consistent light output over a wide voltage rangeMeets FMVSS 108 requirements in horizontal, vertical or any 360° position821 kit includes light, grommet and 421-49 plugAvailable in retail-friendly Viz PackLumenx lens and circuitryMade in USAVoltage RegulatedA single light meets FMVSS 108 requirements when properly mountedIndustry-standard PL3 socket integrated into housing822-7 has flange welded to light, forming a single unit9-16 volt operating rangeItem is sold in a bulk quantity pack of 6, because it comes in retail packaging. Please order in the multiples of 6.
If you want to order a single quantity, please consider ordering this part number, 822KC-7.
- Minimum Voltage: 9 Volts

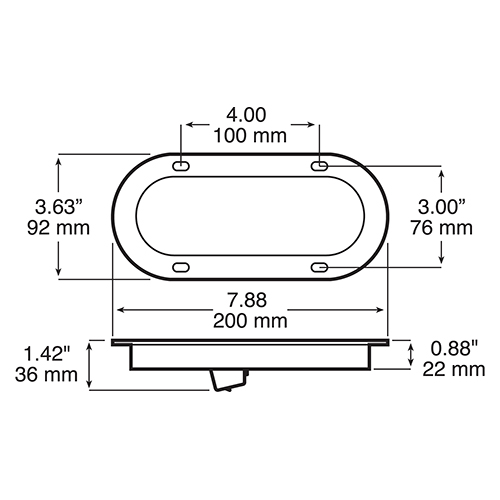

Width: 1.62 Inch
Voltage: 12 Volts
Termination: Pl3
Shape: Oval
Regulatory Compliance: Dot
Multi-Volt: No
Mounting Type: Flange
Maximum Voltage: 16 Volts
Bulb Technology: Led
Marine Use: Yes
Light Color: White
Lens Color: Clear
Length: 7.88 Inch
Height: 3.63 Inch
Family: Lumenx
Container Type: Viz Pack
Bulb/Diode Count: 7
