Product Code: PET-823A-10
Manufacturer Code: 823A-10

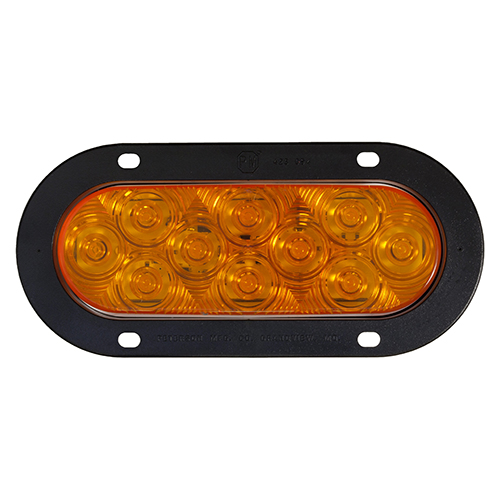

11 DiodesIncludes both turn signal and low intensity marker light circuitsMeets DOT side marker requirementsAMP-compatible connector integrated into housingRegulated design provides voltage protection and consistent light output over a wide voltage range823-10 has flange welded to light, forming a single unit9-32 volt operating range compatible with both 12V and 24V vehiclesMeets FMVSS 108 req. in horizontal, vertical or any 360° position820 kit includes light, grommet and 817-49 plug823 kit includes light and 817-49 plugDefender harness & lighting system approvedLumenx lens and circuitryMade in USA
- Maximum Voltage: 32 Volts

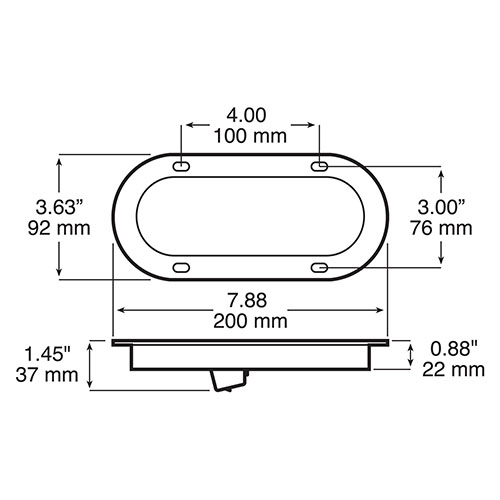

Width: 1.45 Inch
Voltage: 12 Volts
Termination: Amp
Shape: Oval
Regulatory Compliance: Dot
Multi-Volt: Yes
Mounting Type: Flange
Minimum Voltage: 9 Volts
Marine Use: Yes
Bulb Technology: Led
Light Color: Amber
Lens Color: Amber
Length: 7.88 Inch
Integral Reflex: No
Height: 3.63 Inch
Bulb/Diode Count: 10
