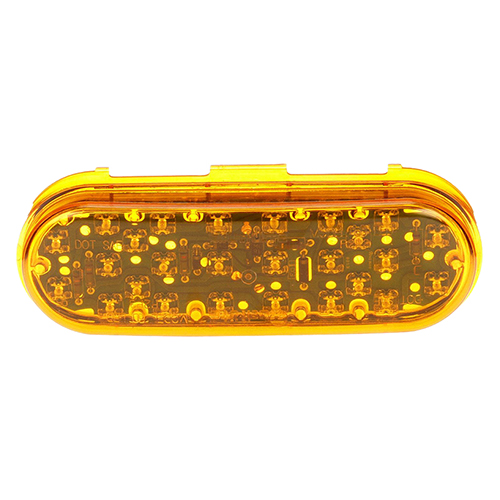

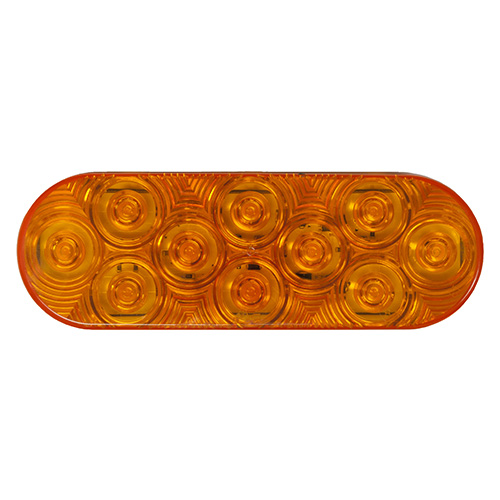

Product Code: PET-820A-10
Manufacturer Code: 820A-10
11 Diodes
Includes both turn signal and low intensity marker light circuits
Meets DOT side marker requirements
AMP-compatible connector integrated into housing
Regulated design provides voltage protection and consistent light output over a wide voltage range
823-10 has flange welded to light, forming a single unit
9-32 volt operating range compatible with both 12V and 24V vehicles
Meets FMVSS 108 req. in horizontal, vertical or any 360° position
820 kit includes light, grommet and 817-49 plug
823 kit includes light and 817-49 plug
Defender harness & lighting system approved
Lumenx lens and circuitry
Made in USA
You may also consider the below similar items....

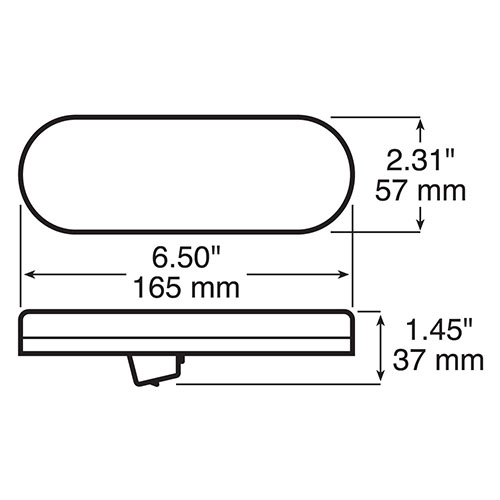

- Maximum Voltage: 32 Volts
Width: 1.45 Inch
Voltage: 12 Volts
Termination: Amp
Shape: Oval
Regulatory Compliance: Dot
Multi-Volt: Yes
Mounting Type: Grommet
Minimum Voltage: 9 Volts
Marine Use: Yes
Bulb Technology: Led
Light Color: Amber
Lens Color: Amber
Length: 6.5 Inch
Integral Reflex: No
Height: 2.31 Inch
Bulb/Diode Count: 10
