Product Code: PET-163R-MV
Manufacturer Code: 163R-MV
5 diodesMade in USAMultivolt version availablePC RatedFunctions as both clearance and side marker light when mounted at a 45° angle. Use 143-18 grommet for PC-rated installationAccepts industry standard 2-prong plug9-16 volt operating range, 9-32 volts for "MV" multi-volt unitsDoes not require "top" mountingKits include LED light, 143-18 grommet and 162-49 plug
- Maximum Voltage: 32 Volts

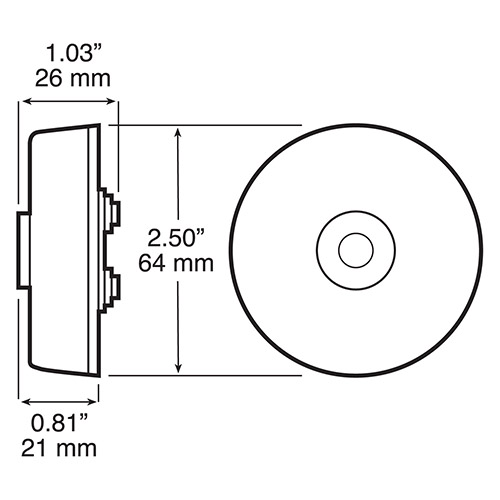

Width: 0.81 Inch
Voltage: 12 Volts
Termination: Pl10
Shape: Round
Regulatory Compliance: Dot
Pc Rated: Yes
Multi-Volt: Yes
Mounting Type: Grommet
Minimum Voltage: 9 Volts
Marine Use: Yes
Bulb Technology: Led
Light Color: Red
Lens Color: Red
Length: 2.5 Inch
Integral Reflex: No
Height: 2.5 Inch
Diameter: 2.5 Inch
Bulb/Diode Count: 5 - 0
