Product Code: PET-817W-9
Manufacturer Code: 817W-9

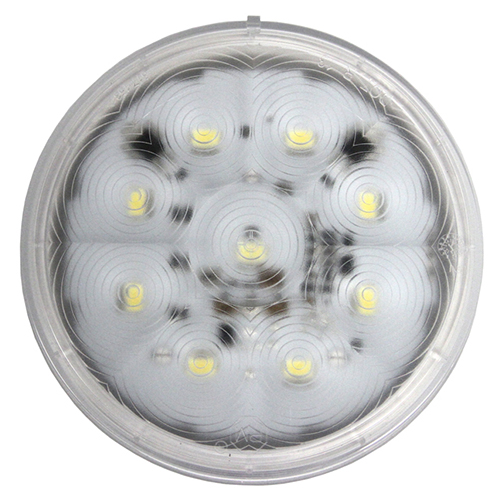

9 DiodesAlso suitable for dome or utility lightRegulated design provides voltage protection and consistent light output over a wide voltage rangeSkirted weld joint provides added protection against road and weather conditions817 series has 9-32 volt operating range. 800 series is compatible with 12 volt systems only, 800 series draws 0.65A @ 14V817/818 series draws 0.29A @ 12V, 0.22A @ 24VM800W-9 & M817W-9 require grommet or surface-mount bracketM800WF-9 M818W-9 are equipped with integral mounting flangeLumenx lens and circuitry, Made in USA, Multivolt version available, Voltage RegulatedNew white diodes behind clear lens, Available in 450 lumen & 800 lumen versions, Adv
- Maximum Voltage: 32 Volts

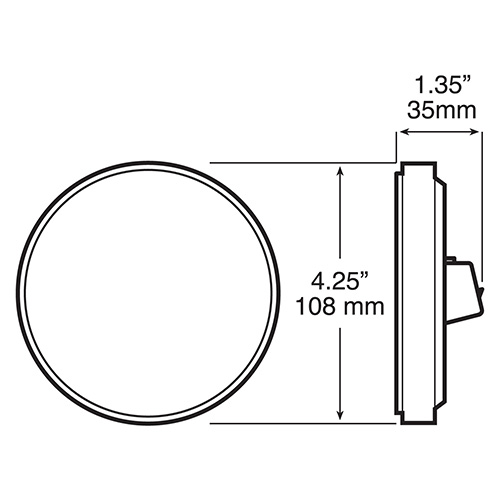

Length: 4.25 Inch
Height: 4.25 Inch
Width: 1.49 Inch
Voltage: 12 Volts
Termination: Amp
Shape: Round
Multi-Volt: Y
Mounting Type: Grommet
Minimum Voltage: 9 Volts
Marine Use: N
Beam Pattern: Flood
Light Color: White
Lens Color: Clear
Integral Switch: N
Exterior Use: Y
Diameter: 4.25 Inch
Coil Cord: N
Bulb/Diode Count: 9
Bulb Technology: Led
