Product Code: PET-233A
Manufacturer Code: 233A
1 or 5 diodes9-16 volt operating range143-18 grommet and compatible plug required for installationAvailable with amber or red diodes behind clear lensDesigned and engineered in USA. Assembled in USA using domestic and imported componentsPC RatedClear lens with colored lightFunctions as clearance & side marker light mounted at 45° angleAmber light equipped with 1 diode, red light has 5 diodesDoes not require top-mount positioning to meet DOT requirementsFeatures a third wire for auxiliary brake or turn functionIntegrated receptacle accepts AMP-style sealed connector
- PC Rated: Y
Marine Use: Y

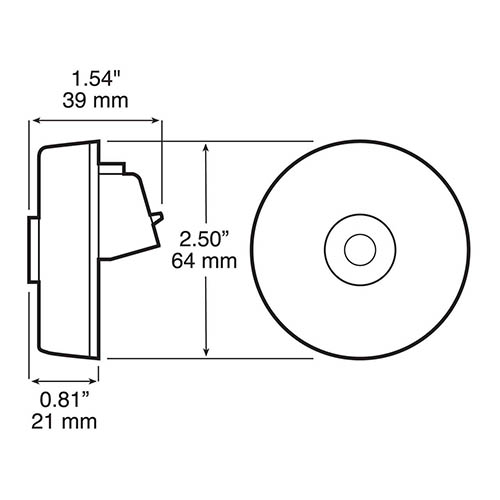

Height: 2.5 Inch
Diameter: 2.5 Inch
Regulatory Compliance: Dot
Termination: Amp
Length: 2.5 Inch
Family: Pm
Multi-Volt: N
Integral Reflex: N
Container Type: Bulk Pack
Width: 1.54 Inch
Bulb/Diode Count: 1
Minimum Voltage: 9 Volts
Maximum Voltage: 16 Volts - Fixture Type: Clearance Marker
- Fixture Shape: 2-1/2-Inch Round
- Mount Type: Grommet Mount
- LED Color: Amber
- Lens Color: Amber
- Voltage: 12 Volts
- Light Style: LED
