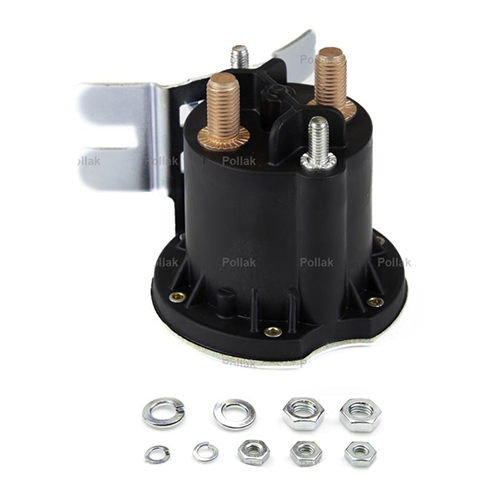

Product Code: POL-684-1261-212P
Manufacturer Code: 684-1261-212P
Our contactor solenoids are equipped with copper contacts that minimize arcing effects and extend solenoid life, providing enhanced durability.We understand and expect the demand for quality, our heavy duty contactor solenoids feature high grade materials for extended service lifeThe environmental seal is the centerpiece of the optimizeddesign for higher performance and lower costOur heavy-duty contactor solenoids are designed specifically for electric vehicles and applications requiring tough environmental conditions
- Warranty: 1 year
Contact Material: Copper
Electrical Cycle Life: 100,000
Max Duty Cycle: 25%
Max On Time: 6 min
Mounting Bracket Type: Curved Bracket
Operating Temperature: -40°C to 82°C
Voltage: 12 V Intermit. / Pull In Voltage 6 / Hold Voltage 3.5
Amperage Rating: Resistive Load Carry 150A/250A / Inductive Load Carry 150A/250A / Peak Inductive Inrush 800A
Continuous Duty: No
Coil Resist Ohms: 5.4
Terminal Quantity: 4
Terminal Gender: Male
Terminal Type: Stud
Color/Finish: Black
Hardware included: Yes
Mounting Bracket(s) Included: Yes
Thread Size: (2) 10-32 Studs (non-grounded) / (2) 5/16-24 Studs - Package Type: Individually Packaged
