Product Code: TRL-10413
Manufacturer Code: 10413
Design allows surface mounting of 2-1/2" lamps in a grommetSuitable for PC requirements on a 45-degree angle when using LED or incandescent PC-rated/combination lamps
- Category: Closed Back Bracket Mount
Series: 10 Series
Warranty: 1-Year
Compatible Light Shape: Round
Compatible Products: 2-1/2 in Diameter Lamps
Feature Highlights: PL-10|Kit - KIT: Yes
Lamp Connection: PL-10
Mounting Connector Diameter: 0.195"
Mount/Trim Color: Silver
Mount/Trim Material: Aluminum - Number of Wires: 2
Part Number: 10413-4
Plug Side One (Simplified): PL-10
Plug Side Two (Simplified): Stripped End
Plug Side Two: Stripped End|Ring Terminal - Taxonomy: Light Mounting.Light Mounting Brackets & Flanges

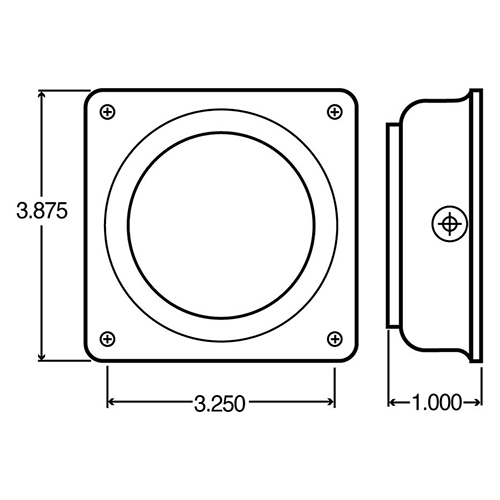

Total Depth: 1"
Temp. Description: Mdl 10 Closed Back Grommet Mou
Total Height: 3.88"
Total Width: 3.88" - VMRS: 015-002-018
Weight: 0.3 lb - Fixture Shape: Round
- Mount Type: 4 Screw Bracket Mount
- Package Type: Standard
