Product Code: TRL-15745R
Manufacturer Code: 15745R

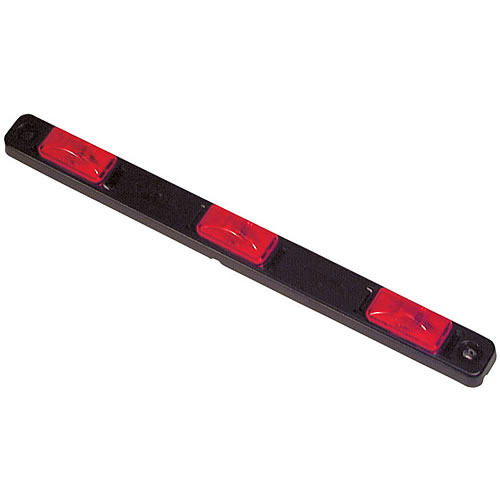

Features high impact polycarbonate ID bar designed to fit in limited mounting areasLamps are mounted on 6 " centersDirect replacement for FordFits in most narrow header railsSnap-lock tabs allow for easy installationReplaces Signal-Stat 1515318 Screw hole diameterUpgrade to Truck-Lite LED lighting systems using 15 Series products
- Warranty: 1-Year
Housing Material: Polycarbonate
KIT (Yes/No): Yes
Lighting Technology: Incandescent
Lamp Connection: PL-10 - Lamp Connection (Simplified): PL-10
Lens Height: 1.21"
Lens Material: Polycarbonate
Lens Width: 2.49" - Mount/Trim Material: Polycarbonate
Number of Wires: 2 - Plug Side One (Simplified): PL-10
Plug Side One: PL-10
Plug Side Two: Stripped End
Sealed/Bulb Replaceable: Sealed
Standards Met: P2
Total Depth: 1.46" - Total Height: 1.61"
Total Length: 0.33"
Total Width: 17.45"
UNSPSC/Tariff: 39111706
VMRS: 034-004-149
Weight: 0.4 lb - Fixture Type: Rectangular
- Fixture Shape: Rectangular
- Mount Type: 2 Screw Bracket Mount
- Package Type: Standard
- LED Color: Red
- Lens Color: Red
- Colors: Black
- Voltage: 12V
