Product Code: TRL-37275C
Manufacturer Code: 37275C

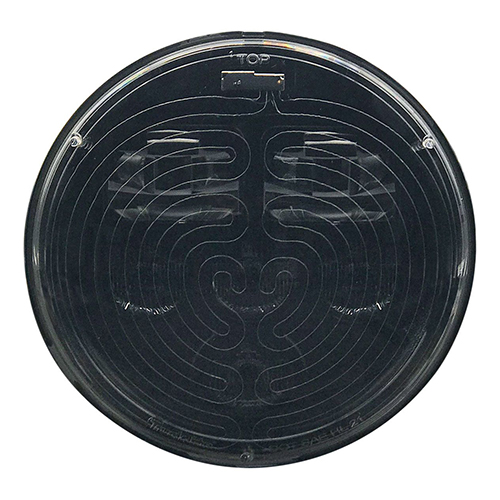

The TL 37 Series Direct LED Headlights, featuring a sturdy die-cast aluminum housing and a round, clear polycarbonate lens, provide a dual benefit of high and low beam patterns with 6 diodes for versatile illumination. With a heated lens option and compatibility with both 12V and 24V systems, they ensure improved visibility in various conditions, making them a reliable choice for safer driving in diverse environments.
- Series: 37 Series
Aiming Type: Mechanical Aim
Beam Pattern: High|Low
Beam Type: LOW / HIGH
Compliance Family: FMVSS 108|CMVSS 108|DOT|SAE
Common Size: 7"
Country of Origin: US
Heated Lens (Yes/No): No
Housing Material: Die-Cast Aluminum
Lamp Connection: Hardwired
Lens Height_INH: 1.2" - Lens Material: Polycarbonate
Lens Width_INH: 7" DIAMETER
Number of Diodes/Bulbs: 6
Number of Wires: 3
Packaging Type: Standard
Plug Side One: Hardwired
Plug Side Two: H4 - 3 blade connector
Sealed/Bulb Replaceable: Sealed
Total Depth: 3.6"
Total Height: 7"DIAMETER
Total Width: 7" DIAMETER
Weight: 1.8 lb
Wire Gauge: 16 - Fixture Type: Headlamp
- Fixture Shape: Round
- Lens Color: Clear
- Voltage: 12|24 V
- Light Style: LED
