Product Code: TRL-40004
Manufacturer Code: 40004
40 SERIES B/U LAMP KIT
- Series: 40 Series
Warranty: 2-Year
Compliance Family: FMVSS 108|CMVSS 108|DOT|SAE
Common Root: 40004
Country of Origin: ZZ
Diamond Shell (Yes/No): No
Feature Highlights: LC_PL-2|Kit|12 V
Housing Material: Polycarbonate
KIT (Yes/No): Yes
Lamp Connection: PL-2
Lens Height_INH: 4.31
Lens Material: Polycarbonate
Lens Width_INH: 4.31
Mounting Connector Diameter_INH: 4.5
Mount/Trim Color: Black
Mount/Trim Material: PVC
Number of Diodes/Bulbs: 1
Number of Wires: 2
Packaging Type: Bulk
Plug Side One (Simplified): PL-2
Plug Side One: PL-2
Plug Side Two: Stripped End|Ring Terminal
Sealed/Bulb Replaceable: Sealed
Standards Met: R
Std Carton Qty: 1

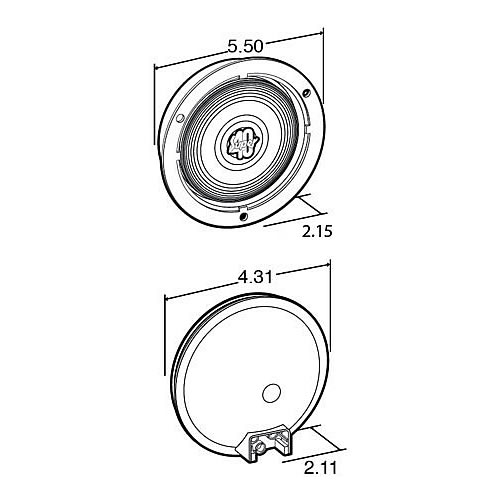

Total Depth: 2.11
Total Height: 5.38
Total Width: 5.38
UNSPSC/Tariff: 25172900
VMRS: 034-003-074
Weight: 0.55 - Fixture Type: Back-Up Light
- Fixture Shape: Round
- Mount Type: Grommet Kit
- Lens Color: Clear
- Voltage: 12 V
- amps: 2.1A
- Light Style: Incandescent
