Product Code: TRL-2803
Manufacturer Code: 2803

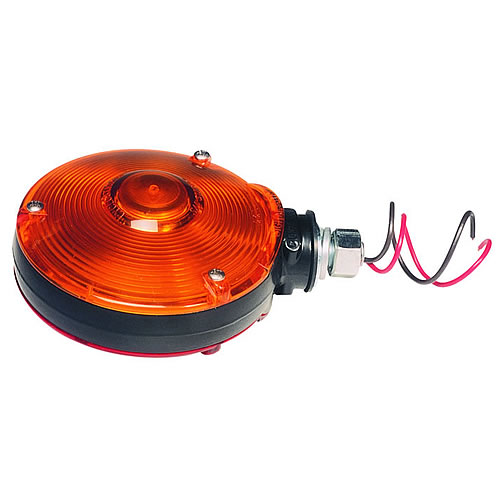

3805Y115 requires Phillips #28S 11/4SC or GE # 13655 bulbFor vehicle application with vehicle width under 80" widePigtail with spring and thermoplastic wire exits via hollow studLED Upgrade options available #2751, 2751A and 2750
- Warranty: 3-Year
Housing Color: Black
Housing Material: Zinc
KIT (Yes/No): No - Lamp Connection: Hardwired
Lamp Connection (Simplified): Hardwired

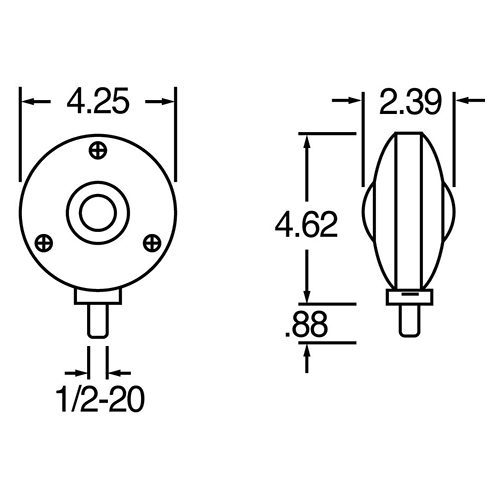

Lens Height: 4.25"
Lens Material: Acrylic
Lens Width: 4.25" - Mounting Orientation: Universal
Plug Side One: Hardwired - Plug Side Two: Stripped End
Position: Universal
Sealed/Bulb Replaceable: Bulb Replaceable
Side Marker (Yes/No): No
Standards Met: I|P|S|T
Total Depth: 2.39" - Total Height: 4.25"
Total Length: 2.1"
Total Width: 4.62"
UNSPSC/Tariff: 25172900
VMRS: 034-002-013
Weight: 1.25 lb - Fixture Type: Round
- Fixture Shape: Round
- Mount Type: 1 Stud Mount
- Package Type: Standard
- Lens Color: Red|Yellow
- Voltage: 12V
- Light Style: Incandescent
