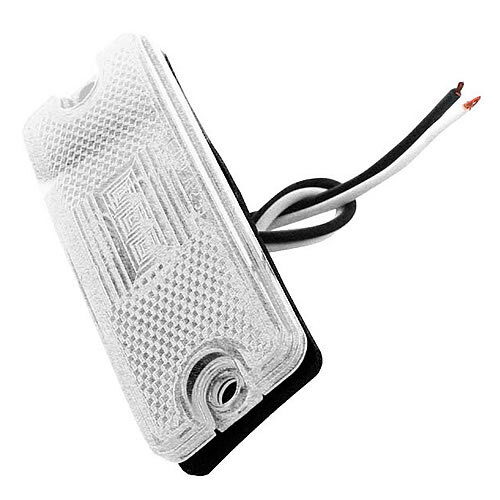

Product Code: TRL-18011C
Manufacturer Code: 18011C
Uses standard mounting holes and accessoriesDraws less current, allowing more power for other vehicle requirementsOmniVolt versions also meet ECE standardsNot suitable for PC requirementsOmniVolt versions address increasing vehicle power demands by operating equally in electrical systems ranging from 10 to 30 voltsMeets SAE J592e standardsMeets SAE J594f when mounted with no rollout or rollback
- Warranty: Lifetime
Housing Material: Acrylic
KIT (Yes/No): Yes
Lighting Technology: LED
Lamp Connection: Hardwired - Lamp Connection (Simplified): Hardwired

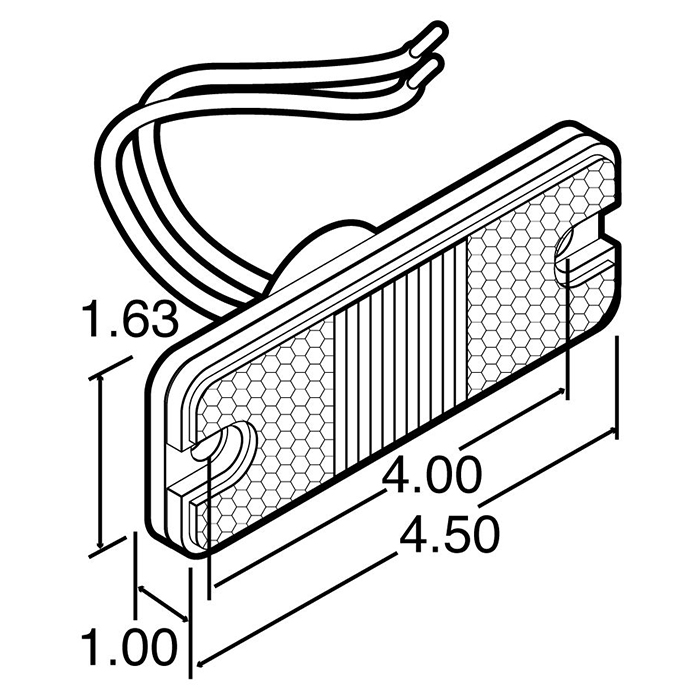

Lens Height: 1.63"
Lens Material: Acrylic
Lens Width: 4.5" - Mount/Trim Material: Acrylic
Number of Wires: 2
Plug Side One: Hardwired - Plug Side Two: Blunt Cut
Reflectorized (Yes/No): Yes
Sealed/Bulb Replaceable: Sealed
Standards Met: E1
Total Depth: 1"
Total Height: 1.63" - Total Length: 0.02"
Total Width: 4.5"
UNSPSC/Tariff: 25172900
VMRS: 034-004-021
Weight: 0.4 lb - Fixture Type: Rectangular
- Fixture Shape: Rectangular
- Mount Type: 2 Screw
- Package Type: Standard
- LED Color: Clear
- Lens Color: Clear
- Colors: Clear
- Voltage: 12V | 24V
