Product Code: TRL-07081
Manufacturer Code: 7081
Recess mounts using two screws at 30" centers and two screws at 42" centers, Watertight lamp mates withPackard connector
- Category: Stop/Turn/Tail
Warranty: 1-Year
Compliance Family: FMVSS 108|CMVSS 108|DOT|SAE
Current Minor: 0.48
Feature Highlights: Stripped End|Bulk|12 V
KIT: No - Lamp Connection: Blade Terminal
Lens Height: 6.46"
Lens Material: Polycarbonate - Lens Width: 6.46"
Number of Wires: 2
Plug Side One: Packard Connector 6288471
Plug Side Two: Stripped End - Reflectorized: No
Sealed/Bulb Replaceable: Sealed
Standards Met: I6|P|S2|T2
Taxonomy: Lights.Stop/Turn/Tail Lights
Total Depth: 2.03"

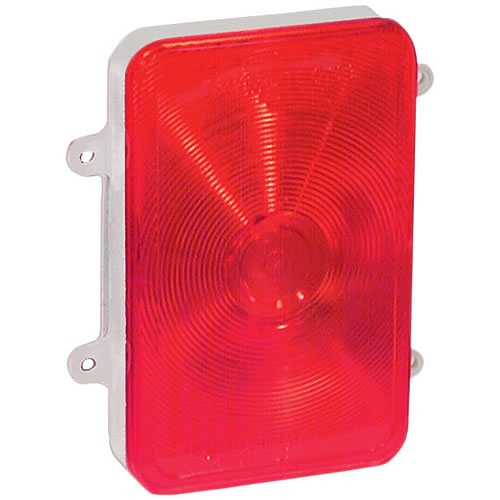

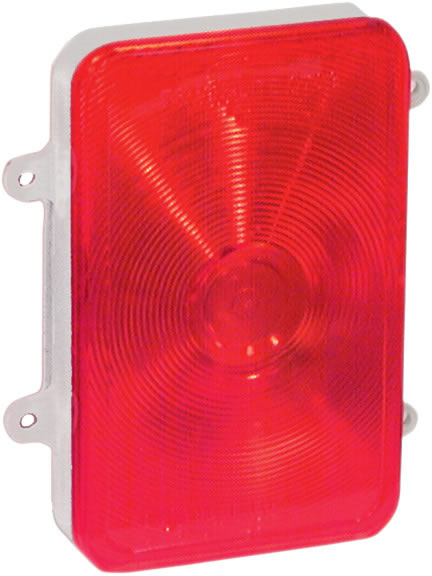

Temp. Description: Rectangular S/T/T - Total Height: 5.22"
Total Length: 2.1"
Total Width: 6.46"
VMRS: 034-002-000
- Fixture Shape: Rectangular
- Mount Type: 4 Screw
- Package Type: Bulk
- LED Color: Red
- Lens Color: Red
- Voltage: 12V
- Light Style: Incandescent
