Product Code: TRL-90325Y
Manufacturer Code: 90325Y
90325Y lamp functions as a turn signal and features a directional arrow protectionSurface mounts with four #10 screws on a 625" bolt circleRequires a 1" diameter hole, 1" deepPopular lamp on buses and emergency vehiclesReplaces Signal-Stat 6505/A
- Warranty: 1-Year
Housing Material: Steel
KIT: Yes
Lamp Connection: Hardwired - Lens Height: 6.25"
Lens Material: Acrylic
Lens Width: 6.25" - Plug Side One: Hardwired
Plug Side Two: Stripped End
Position: Auxiliary
Reflectorized: No - Sealed/Bulb Replaceable: Bulb Replaceable

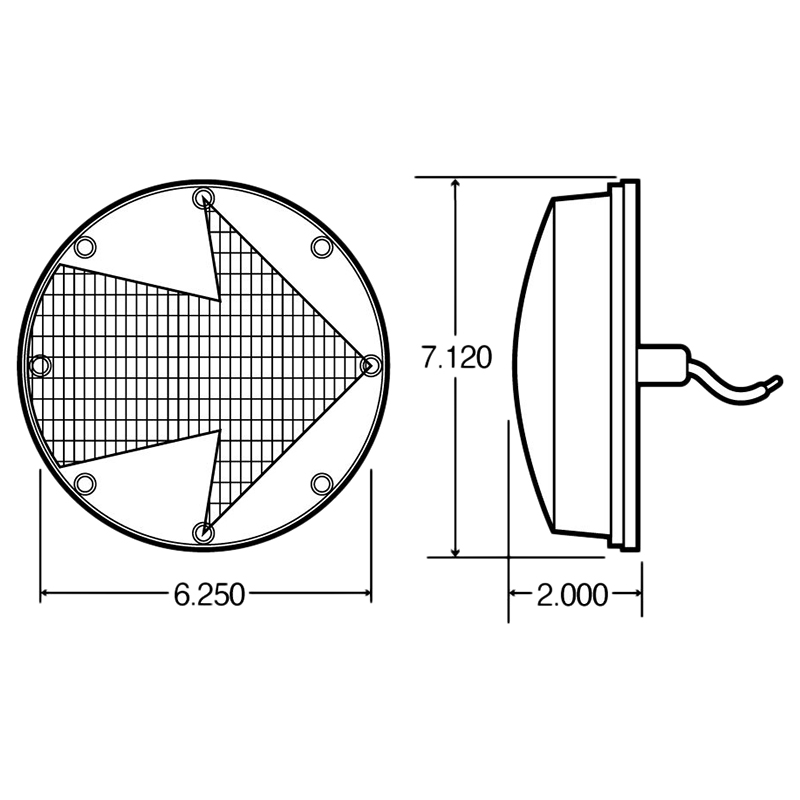

Total Depth: 2"
Total Height: 7.12"
Total Length: 2.1"
Total Width: 7.12"
UNSPSC/Tariff: 25172900 - VMRS: 034-003-071
Weight: 1.9 lb - Fixture Shape: Round
- Mount Type: 4 Screw
- Package Type: Standard
- LED Color: Yellow
- Lens Color: Incandescent
- Voltage: 12V
