Product Code: WLN-50G03ZGR
Manufacturer Code: 50G03ZGR
The 500 Series lighthead features our Linear Super-LED optic technology, which provides bright, consistent warning illumination for several different vehicle applications, including fire, EMS, utility, and DOT fleets. Its design ensures powerful warning signals and scene lighting, providing effective visibility in both daytime and nighttime conditions. Built for mounting versatility, the 500 Series can be easily installed on a variety of vehicle surfaces. Engineered for durability, the 500 Series is built to withstand harsh environments, making it a reliable choice for any fleet requiring adaptable, high-output lighting.

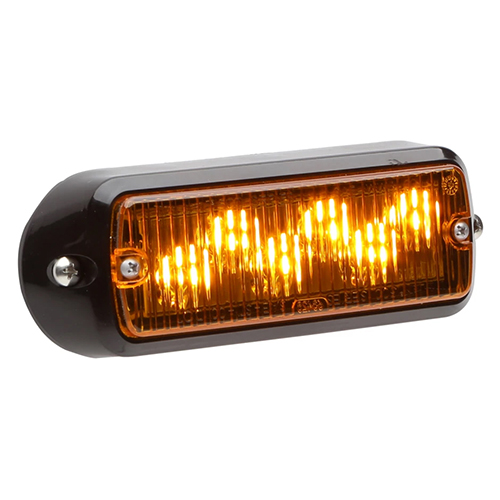

Pictures shown are for illustration purpose only
- Optics: Linear Super-LED
Technology: Connect multiple Whelen devices for synchronized or alternating flash patterns
Flash Patterns: 25 Scan-Lock flash patterns
Control: SmartLED
Configuration: Combination 180°/TIR3 Warning
Application Models Available: Warning, Brake/Tail/Turn, or Back-Up
Optional Additions: Black, Chrome, or Aluminum Flange, Grommet Mount Kit
Hard-Coated Lenses: Resist environmental damage from sand, sun, salt, and road chemicals
Conformal Coated Electronics: environmental, moisture, and vibration resistance
Fully Encapsulated: Moisture, vibration, and corrosion resistance
Included Cables & Hardware: 18 AWG 12" (30.48 cm) Pigtail
SAE Standards: SAE J595, SAE J845
Emergency Vehicle Standards: NFPA 1900, KKK-A-1822F
Regulatory Compliance: CA Title 13, R10
Warranty: 5-year

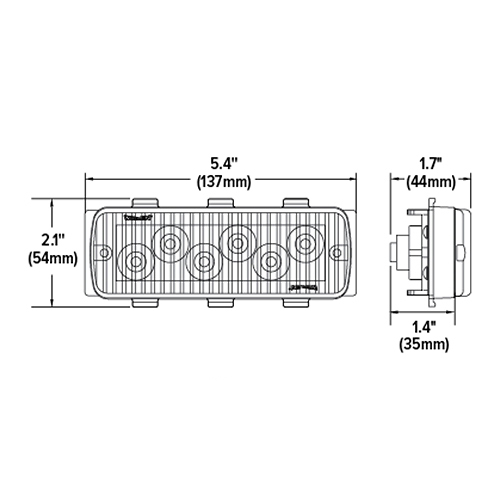

Width: 5.38" (13.67 cm)
Height: 2.13" (5.41 cm)
Depth: 1.63" (4.14 cm) - Fixture Type: Lighthead
- Mount Type: Surface
- LED Color: Green
- Lens Color: Green
- Voltage: 12 VDC
- amps: 0.315 (peak), 0.125 (avg.) per side
- Light Style: LED
