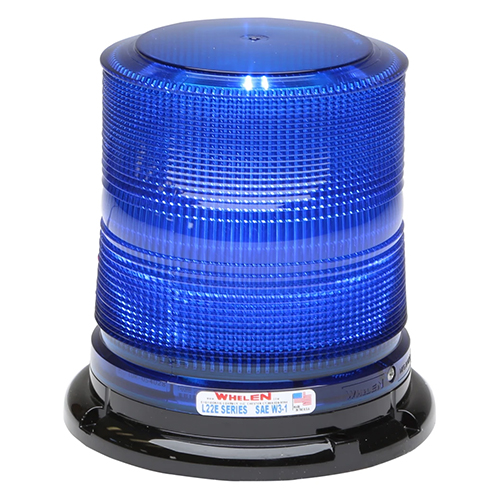

Product Code: WLN-L22HBP
Manufacturer Code: L22HBP
The Whelen L22 beacon combines a compact design with powerful SuperLED performance, making it an excellent choice for utility vehicles in need of 360-degree warning visibility. Built for durability, the L22 features rugged housing that is built to resist moisture, vibration, and corrosion to ensure reliable performance in even the harshest environments. With multiple flash patterns and easy installation options, the L22 adapts to a range of applications, providing robust, long-lasting performance in a compact design.
- Optics: Super-LED Beacon
Technology: Scan-Lock: Advanced flash pattern control
Sync: Connect multiple Whelen devices for synchronized or alternating flash patterns
Flash Patterns: 25 Scan-Lock flash patterns including Steady-Burn
Control: SmartLED
Dome Profile: High
Optional Additions: Branch Guard, Mirror Mount Bracket, or Shelf Mount Bracket
Hard-Coated Polycarbonate Dome: Resists environmental damage from sand, sun, salt, and road chemicals
Polycarbonate Base
Fully Encapsulated: Moisture, vibration, and corrosion resistance
Reverse Polarity Protection
Minimal RFI/EMI Radiation: Virtually zero radio frequency or electromagnetic interference
Durable: Rated to last thousands of hours
Included Cables & Hardware: 18 AWG 15" (38.10 cm) Pigtail
Certifications: SAE Standards: SAE J845; Regulatory Compliance: R10
Warranty: 5-year

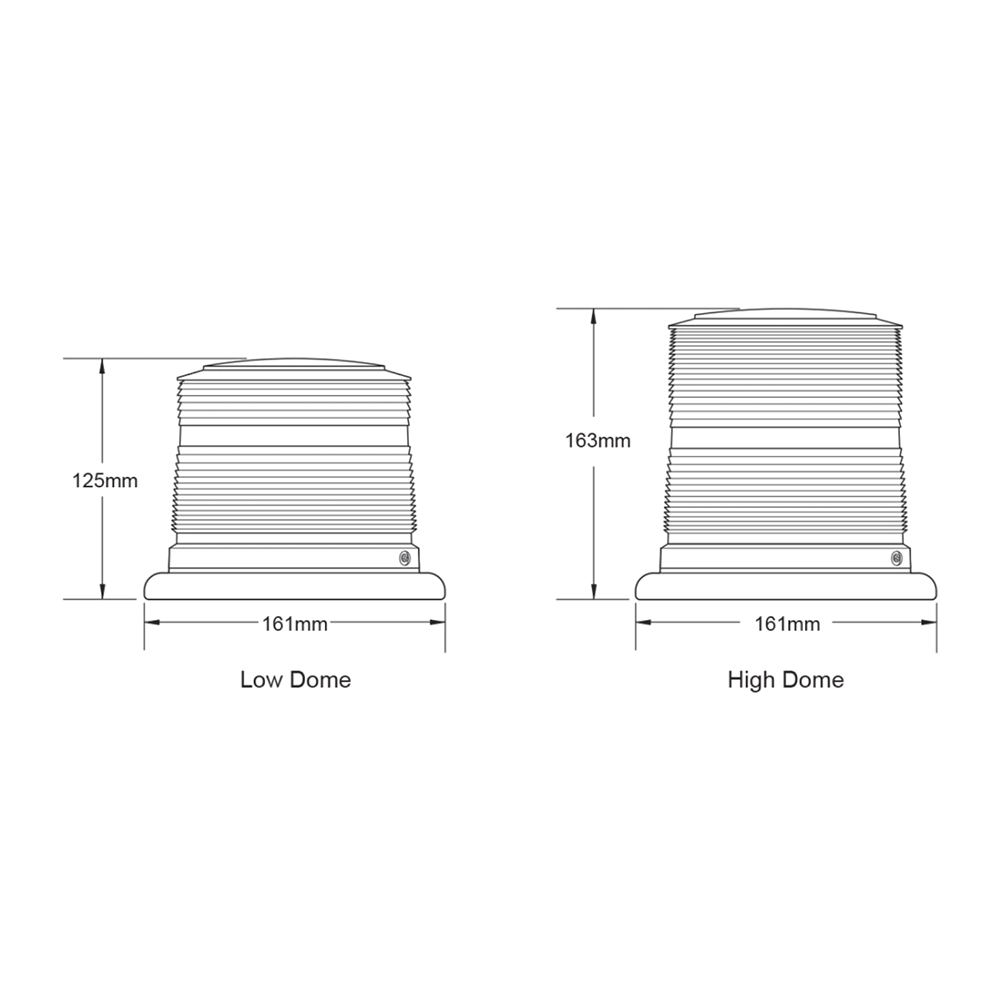

Height: 6.81" (17.30 cm)
Diameter: 6.44" (16.36 cm) - Fixture Type: Beacon
- Mount Type: Perm/Pipe Mount
- Voltage: 12 VDC
- amps: 1.50 (peak), 0.60 (avg.)
- Light Style: LED
