Product Code: GRT-84581-3
Manufacturer Code: 84581-3
90mm diameter lensMounting system with included adjustment rods designed to replace standard 90mm halogen headlampsHard-coated, high-impact polycarbonate lensCast-aluminum housing with sealed integrated connectorCompact lamp profile to fit most existing applications9V - 32V multi-volt designIP69K rated for maximum protection against dust and moisture intrusionItem is sold in a bulk quantity pack of 8
- Ingress Protection: IP69K
Connection Type: Integrated 2-pin DT connector
Application: On-Highway, Off-Road
High/low Voltage Limits: 9V/32V
Color Temperature: 6100 K
Operating Temperature: -40°C to +85°C
Mounting Type: 3-point using adjustment hardware, 2- and 4-point rigid
Lumens: 950 Effective
Pack Quantity: 4
Heated (Y/N): N

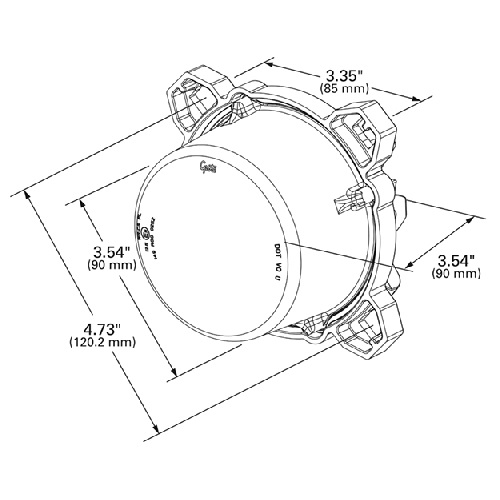

Dimensions: 143x143x85mm (H/W/D)
Housing Color: Black
Material: Lens: Hard-coated Polycarbonate, Housing: Powder-coated Aluminum
Weight: 1.2 lb (527 grams)
Regulations: FMVSS 108 UB1, ECE R149 Sym. (R113)
Product Type: LED Headlamp
Package Type: Bulk Pack Box
Moisture Resistancy: IP69K
ROHS: Yes
Warranty: 3 Years
Watts: 18W - Fixture Shape: Round
- Lens Color: Clear
- Voltage: 9-32V
- amps: 1.37A @ 13.8V, 0.66A @ 28V
