Product Code: OPT-STL178R1PGP
Manufacturer Code: STL178R1PGP
Sonically sealed, waterproofMount in any 360 degree positionFlange surface mount-no panel cut-out requiredHard wired (red=stop/turn, black=tail, white=ground), with optional molded connectorsLifetime LED Warranty
- Diodes: 16
Connection: Hard wired, female PL-3
FMVSS: S2 T2 I6
Housing Material: Polycarbonate
Lens Material: Polycarbonate
Warranty: Lifetime LED Warranty
Weight: 0.380 lbs.

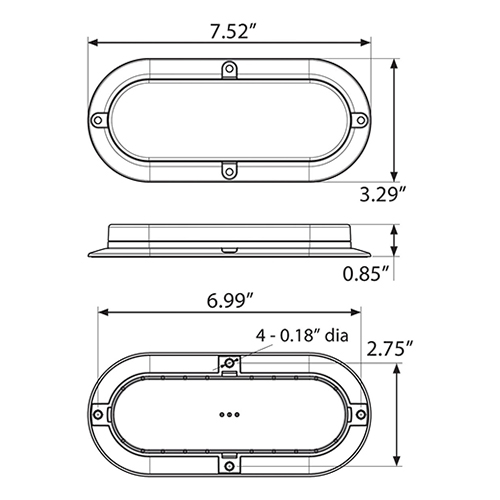

Dimensions (W x H x D): 7.520 x 3.290 x 0.850 - Fixture Type: Stop/Turn/Tail Light
- Fixture Shape: 6" Oval
- Mount Type: Flange - Surface
- Colors: Red
- Voltage: 12V
- amps: .59 Stop/Turn, .295A Tail
