Product Code: TRL-07080
Manufacturer Code: 7080

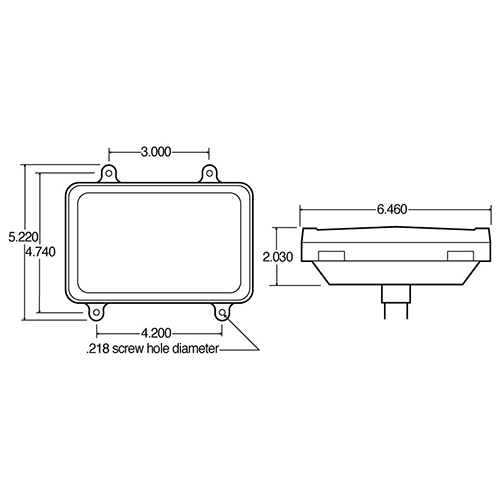

Watertight lamp mates withPackard connectorRecess mounts using two screws at 30" centers and two screws at 42" centers12V lamps mate with PE Connector 62884715
- Category: Front/Park/Turn
Warranty: 1-Year
Compliance Family: FMVSS 108|CMVSS 108|DOT|SAE
Current Major: 2.1
Current Minor: 0.48
Diamond Shell: No - Feature Highlights: No Plug|12 V
Housing Material: Polycarbonate
KIT: No
Lamp Connection: Packard Connector 6288471 - Lamp Connection (Simplified): Packard Connector
Lens Height: 4.75"
Lens Material: Polycarbonate
Lens Width: 6.46" - Mount/Trim Material: Polycarbonate
Plug Side One: No Plug - Plug Side Two: No Plug
Sealed/Bulb Replaceable: Sealed
Standards Met: I6|P|P2
Taxonomy: Lights.Front/Park/Turn Lights
Total Depth: 2.03"
Total Height: 5.22" - Total Width: 6.46"
VMRS: 034-003-057
Weight: 0.8 lb - Fixture Shape: Rectangular
- Mount Type: 4 Screw
- Package Type: Standard
- LED Color: Amber
- Lens Color: Yellow
- Colors: Mount/Trim Color: Yellow
- Voltage: 12V
- Light Style: Incandescent
